CATS Sine software offers a complete solution for your swept sine testing needs. With tracking filter processing in DSP's on input channel cards largeSine
channel count swept sine tests can be performed without degradation in control loop performance.


  • Analog quality sine signal generation
  • Multi-channel digital tracking filters with variable fixed and proportional bandwidths
  • Digital resampling provides true proportional bandwidth tracking filters
  • Sweep range from 0.1 to 10,000 Hz
  • Optional resonance search and phase-tracked dwell
  • Frequency Response Function (FRF) measurements for all active channels
  • Independent limit profiles for each active measurement channel

Sine testing can be done two ways:

  • Overall test level control, where we do not care about what frequency causes the response energy.
  • Fundamental Control, which requires Tracking Filters.

Signal Generation hardware matters. PUMA generates harmonic free analog quality Sine signals that permit remarkable resonance control and accuracy.

SineNOT generating Harmonic content, means the power amplifier WON'T receive high frequency energy which it CANNOT reproduce, thereby removing another worry from the Test Professional's mind.

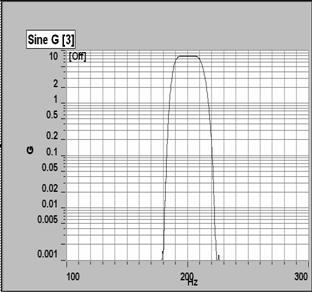

Nearly all tests presume Tracking Filters are being employed. PUMA provides True analog quality tracking filters created in DSP with the same Sine-Co-Sine Heterodyne method SD patented in 1961, If you must test to MilStd expectations, you must use tracking filters. FFT based processes DO NOT yield the same accuracy that Digital Tracking Filters offer.

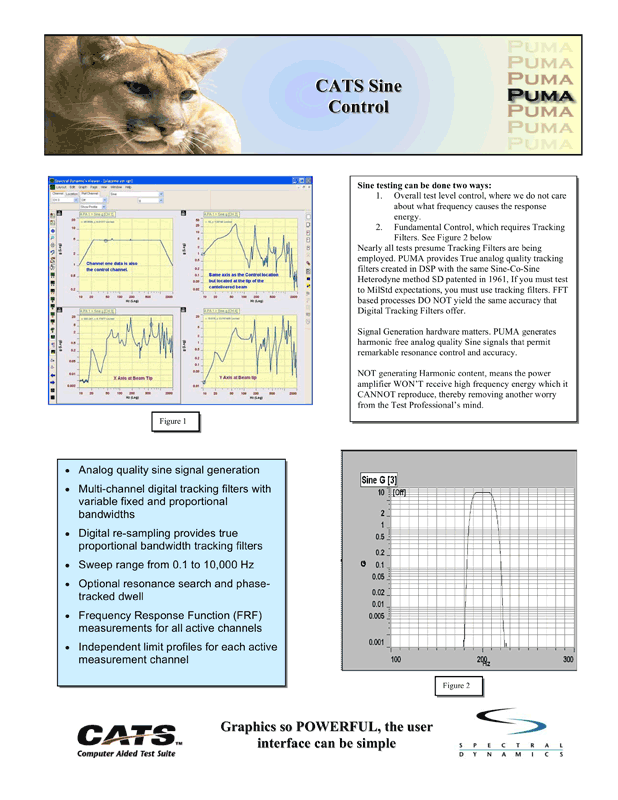

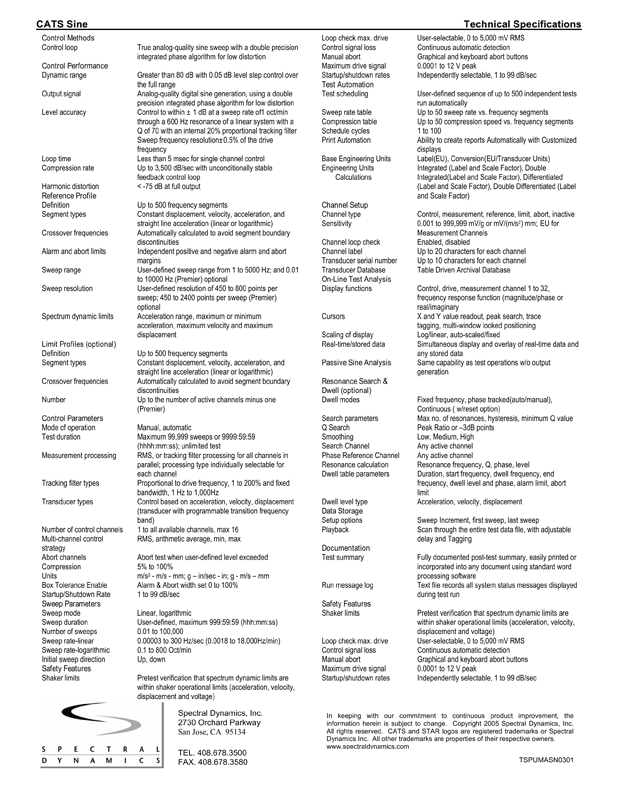

Sine Product Brochure & Technical Specifications

(click to expand)
Sine1   Sine 2
    Download as PDF
