Lynx™
Powerful, Flexible and Affordable Vibration Controller
The Lynx™ control system is designed to meet a wide range of environmental test requirements.
It combines the simplicity of operation required for production screening with the power and versatility required for R&D prototype testing.
Key Features
- 4 Input channels expandable to 16 Each module is composed with a drive channels and 4 inputs. Synchronization of modules allows to increase the measurement channels number to fit your application.
- Multi-channel control capability Each input channel can be declared as control channel. If several inputs are selected, the user can easily define the strategy for a multi-channel control of the test.
- Advanced graphics & reports Our team developed a powerful graphic interface to monitor your testing and visualize data in a customizable and flexible manner. It allows to configure your display and export your results directly to Word® or Excel®.
- Data storage options You entirely define the storage of the test. The LynxTM will accordingly record the time stream and/or the analysis, to meet your customized parameters.
- Automation features Need to Sequence several random profiles during an extended test? Linking our different control software modules (Random, Sine or others) can automate your testing with LynxTM.
- Safety The LynxTM has integrated several internal systems checks to prevent damage to your system prior to starting a test sequence. This feature, along with our user control limits, provide for the ultimate in safety and protection of your equipment.
- System on Windows 10 – USB3 connection to host Spectral Dynamics integrates the latest technology in its products. The Lynx™ is Windows 10 based and our hardware to PC communication is the latest in USB technology -USB3.
Lynx Applications
The Lynx™ is no ordinary controller when it comes to vibration testing. To meet your most stringent test requirements, the system incorporates our patented Adaptive Digital vibration control technology. Our Adaptive Technology is the advanced technology every vibration controller should have. Our leading-edge algorithms calculate complex closed loop control solutions in milliseconds in a unique iterative process. This allows your test article and the system to be controlled during the test in the ultimate fashion. Our technology protects your test article and the test system while allowing for the ultimate in response delivering you the confidence in test results you desire.

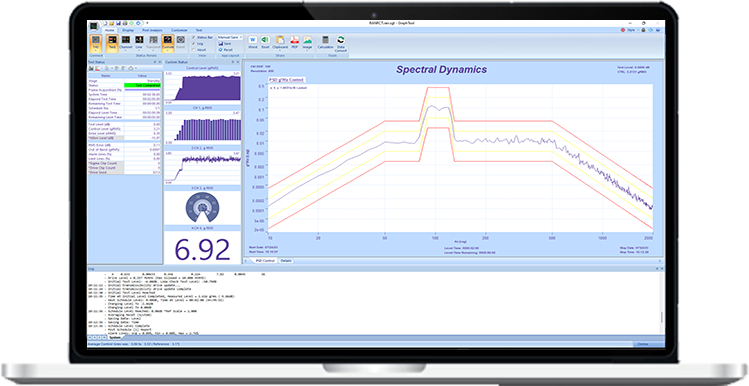

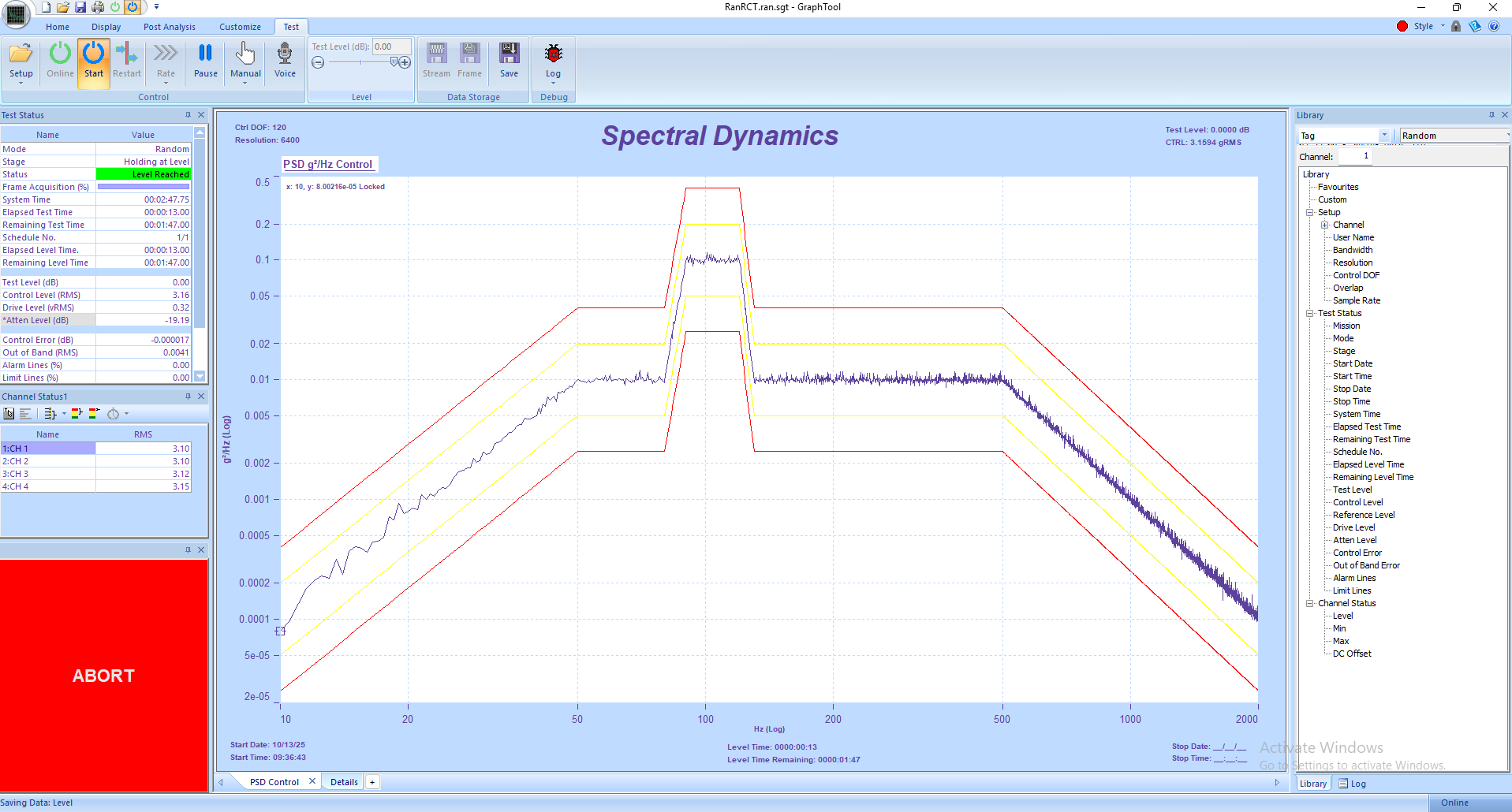

Random
Spectral Dynamics developed a control algorithm with separate controls loops dedicated to controlling the shape of the drive spectrum and overall RMS level. This optimizes the random control signal...

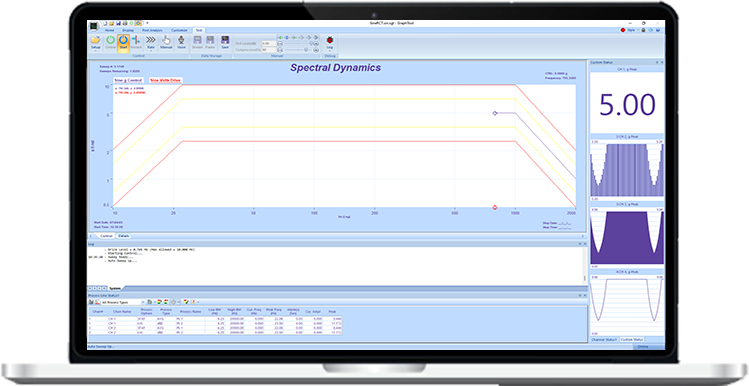

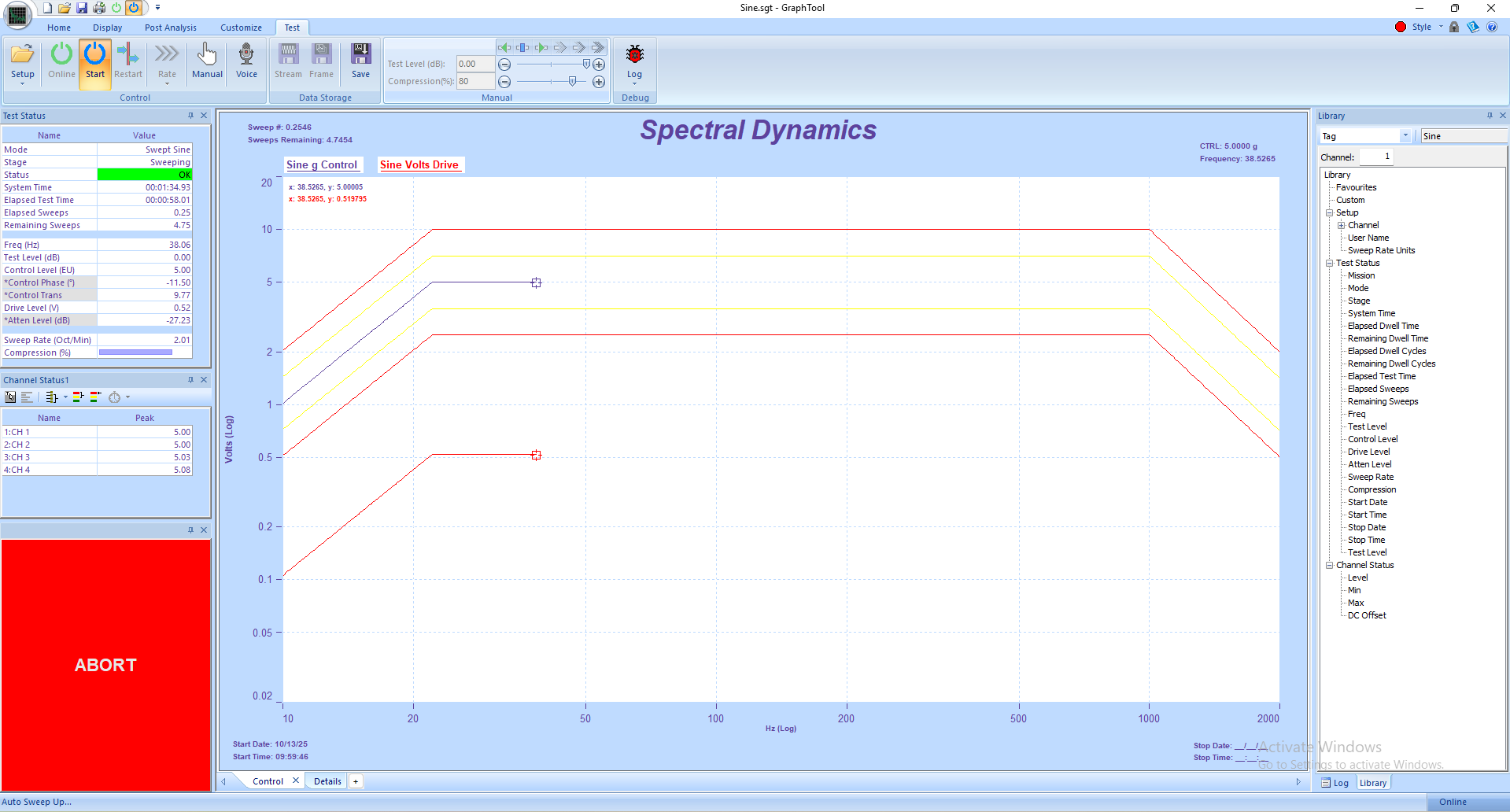

Sine
Spectral Dynamics software modules always provide you with the best in control technology. Our Lynx™ Sine Module incorporates a true analog-quality sine sweep with a double precision integrated...

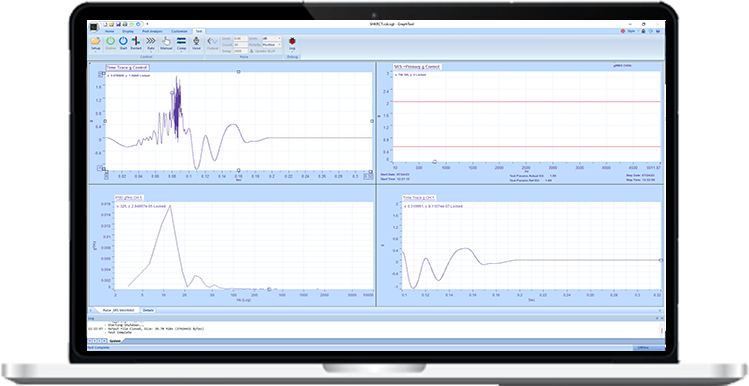

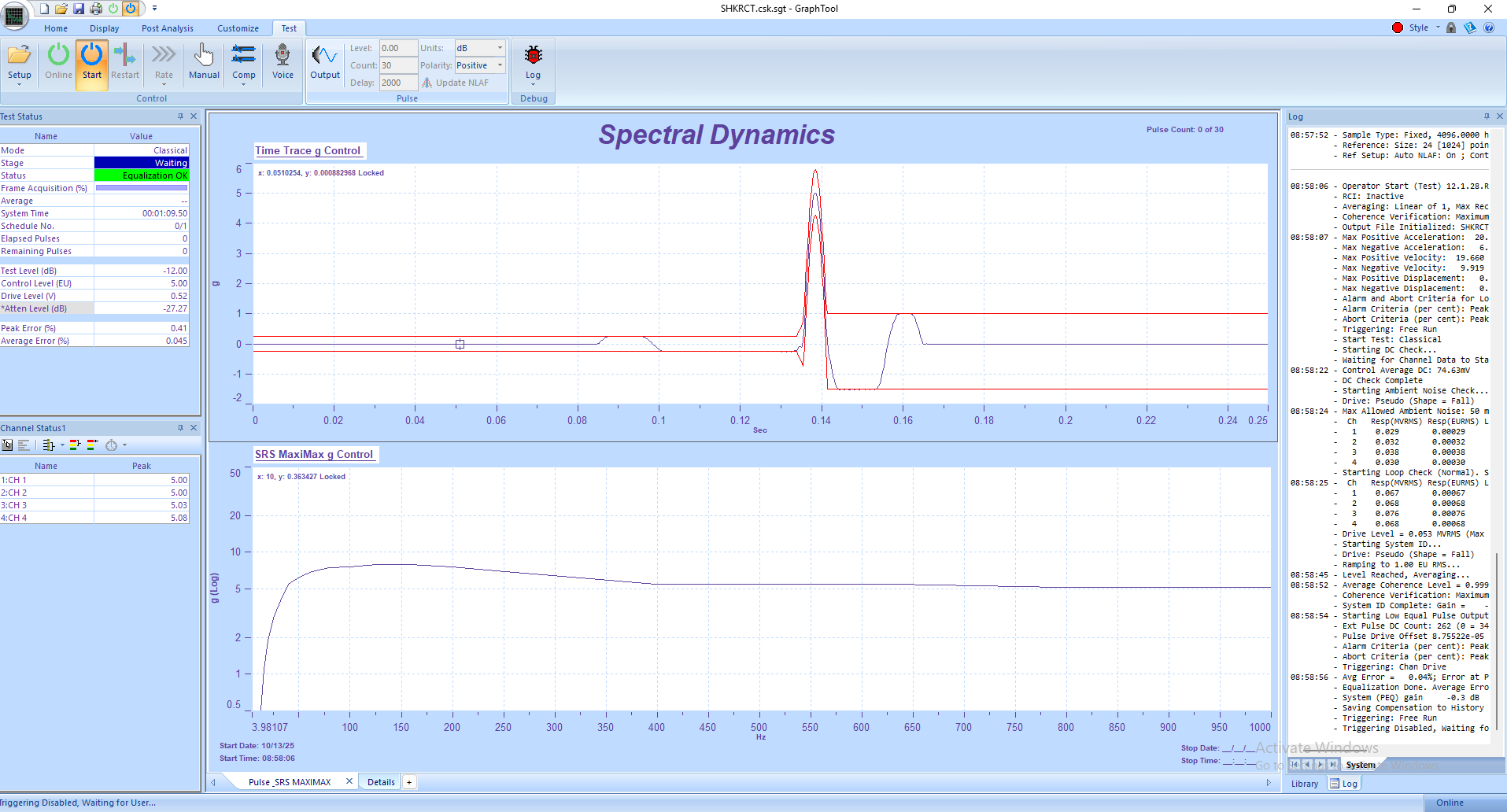

Shock
The Lynx™ Shock Module solution generates different types of shock pulses to simulate the test item experiences in its real environment. As an expert in the field, Spectral Dynamics developed...

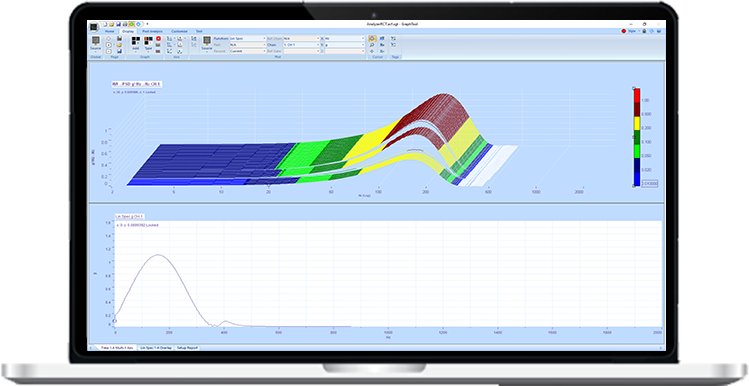

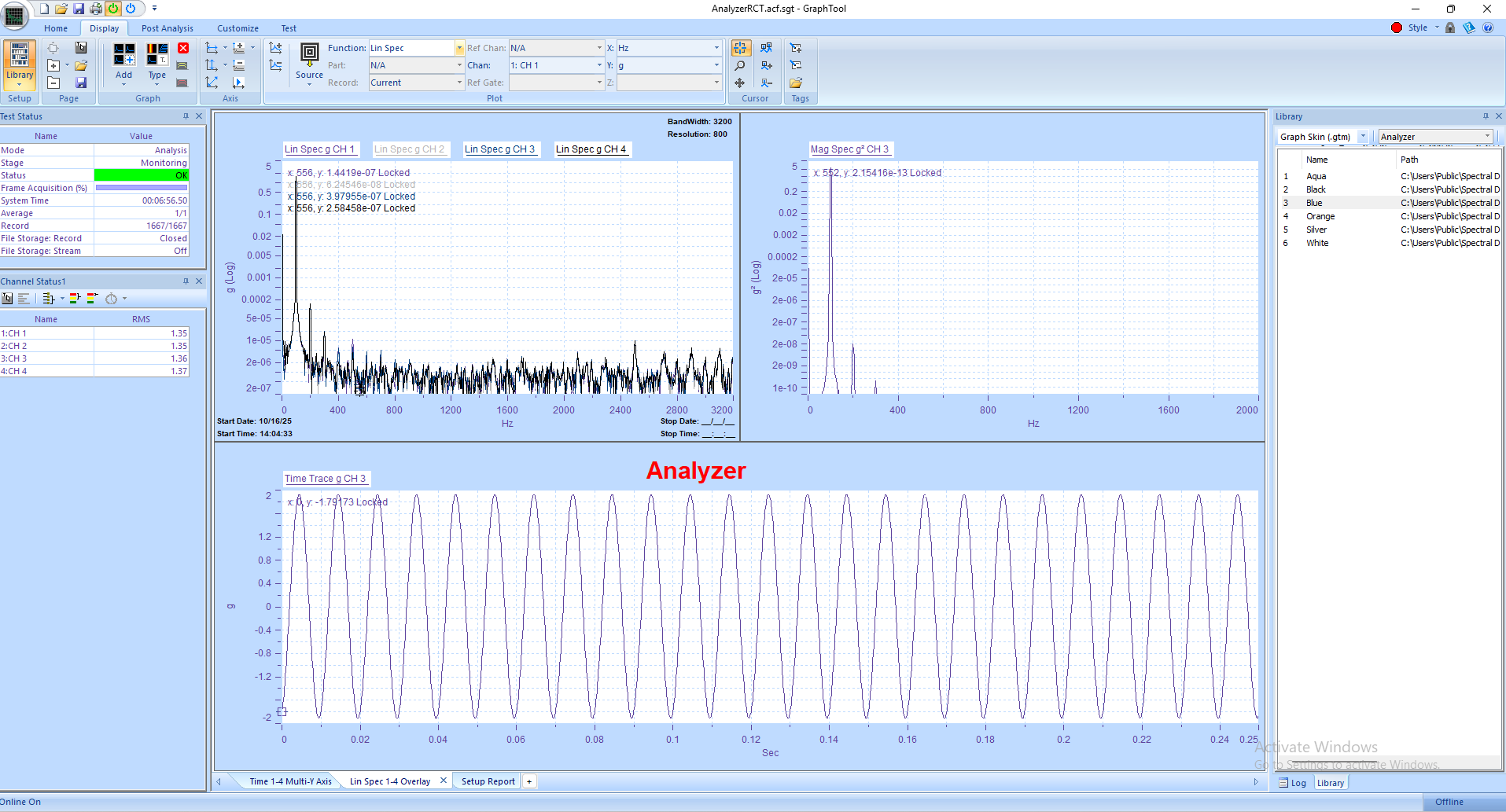

Analyzer
The Analyzer application provides a comprehensive set of tools for data acquisition and signal analysis. Tests can be performed with or without output generation.

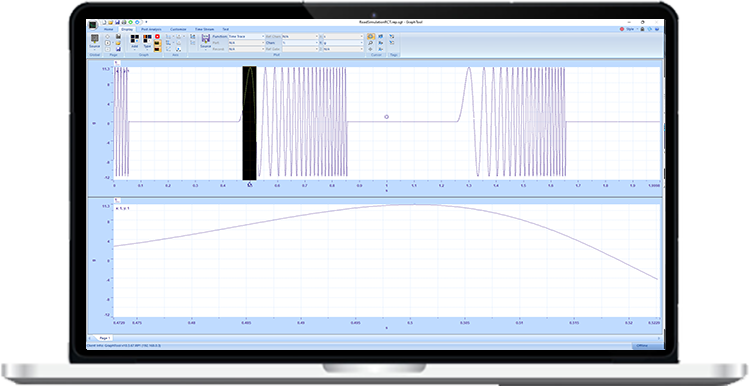

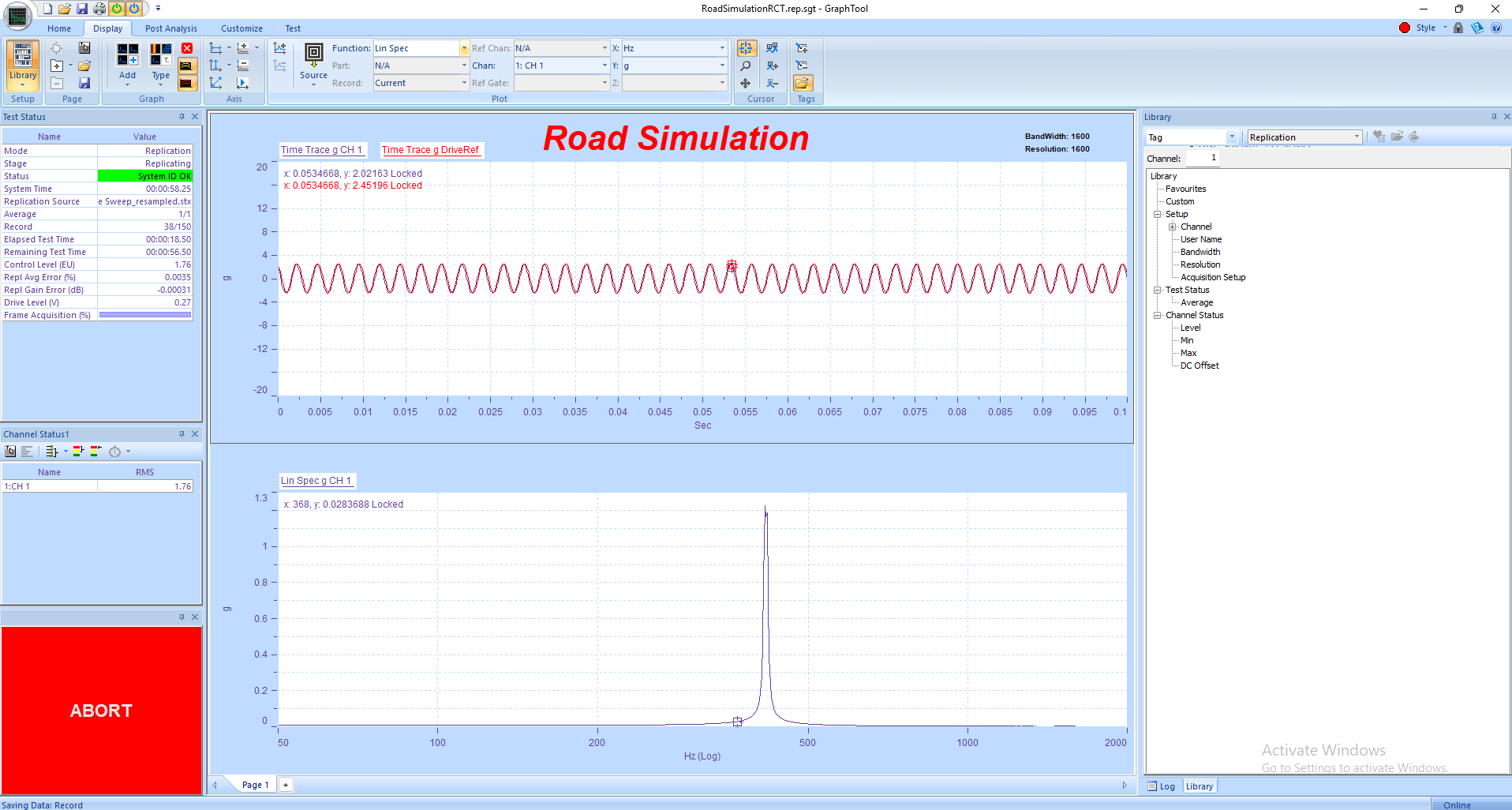

Road Simulation
Road Simulation makes it possible to reproduce actual measured time history vibration data in the laboratory on a shaker system. Extensive time history editing features enable large sets for field...

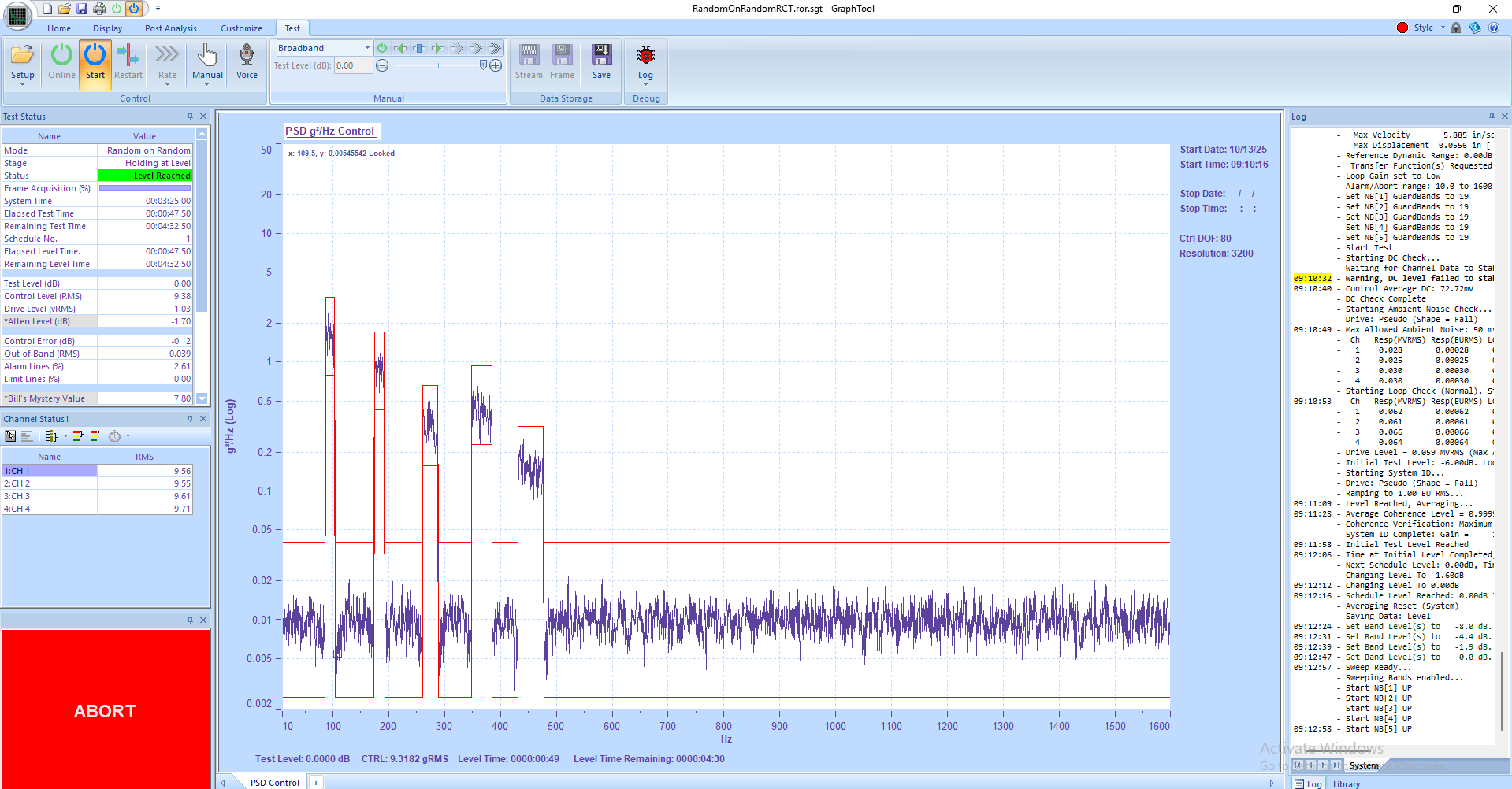

Random On Random
Random on Random simulates complex narrowband random on broadband random vibration environments. Narrowband signals may be swept or stationary. This vibration environment is typically seen in...

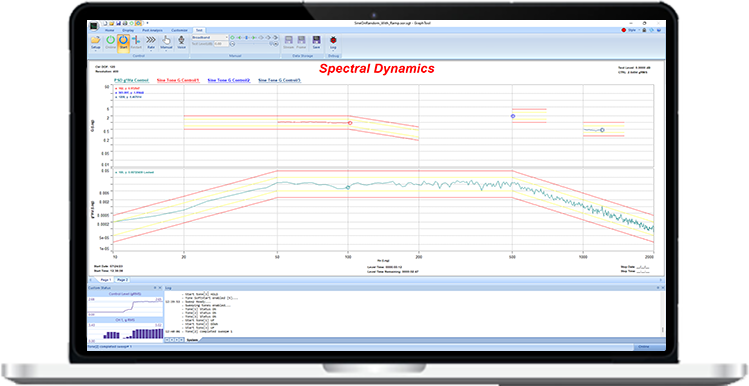

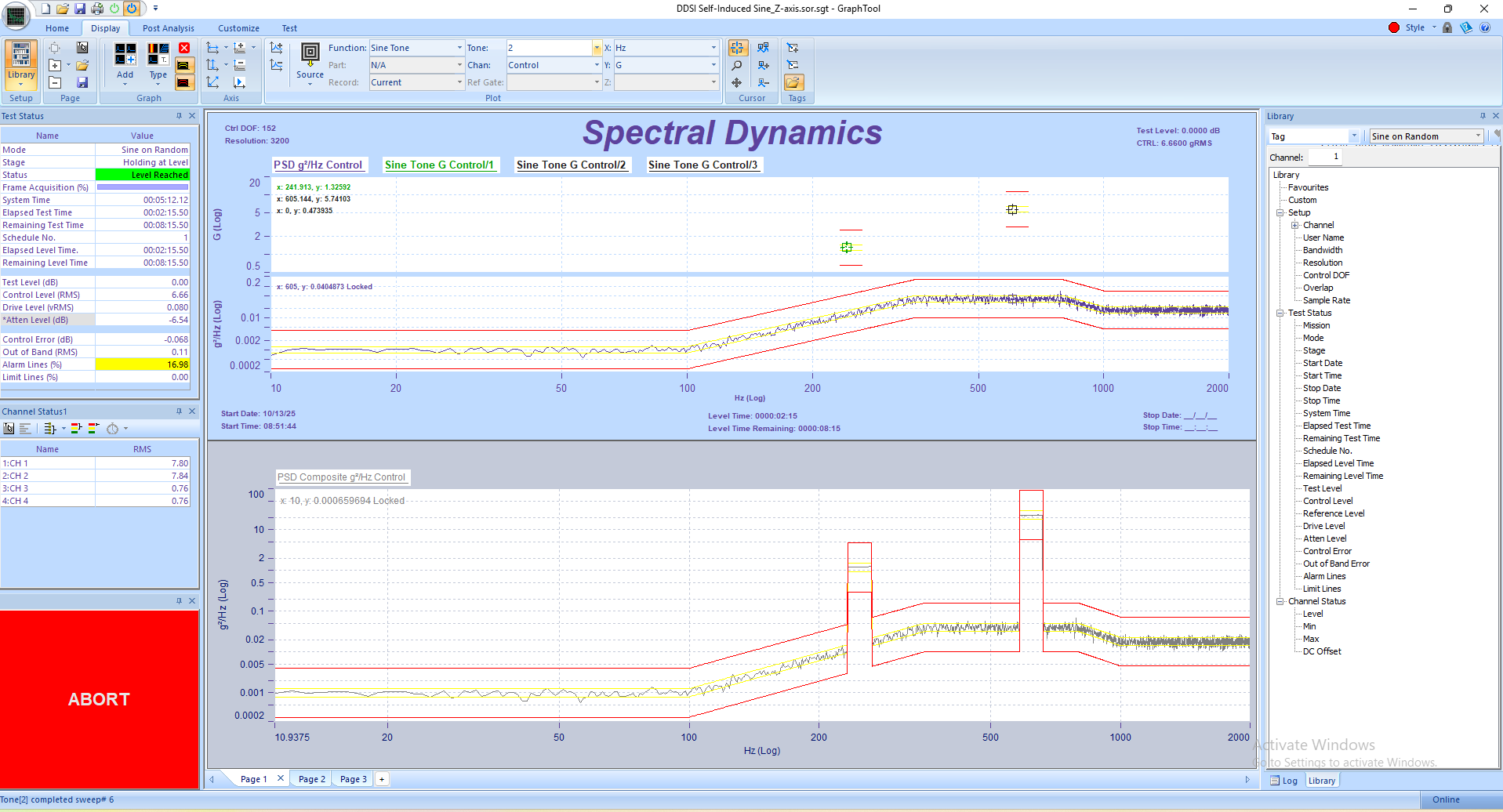

Sine On Random
Sine on Random consists in combining pure sinusoidal signals with random signal waveforms. The highest quality random signals are generated and controlled via our advanced algorithm signal...

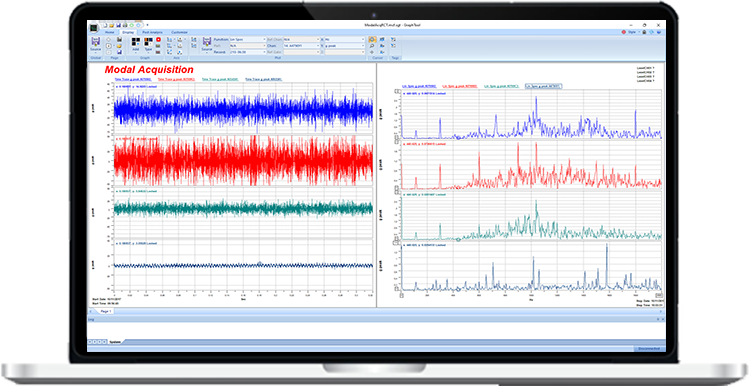

Modal Acquisition
Modal Acquisition was designed specifically for acquiring data for Modal Analysis. Some of the Modal specific acquisition capabilities include automatic incrementing of modal DOF during acquisition, ability to...
Applications Tools
Optional tools such as data conversion utilities, one button-click test report generation and database systems are available.

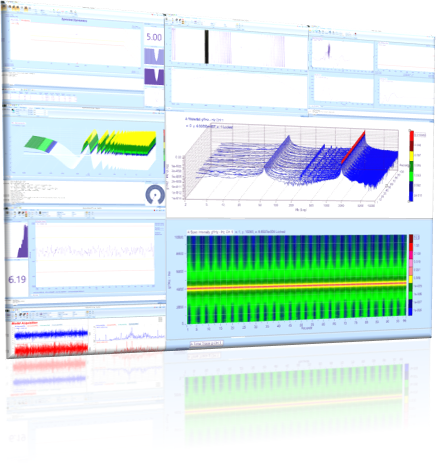

Powerful Graphic Displays
Each application has access to our GTX Viewer which allows to the user to view real-time or stored data in various plots, charts and status windows.

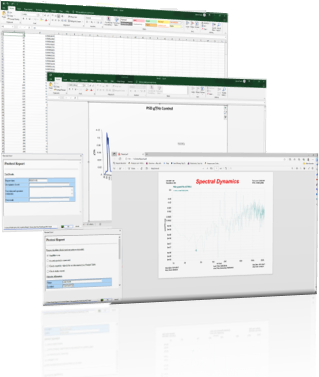

Report Generation
Generate one button reports or automate the process at the end of each test.

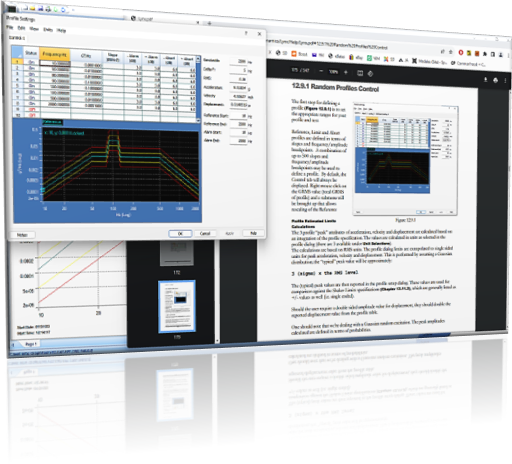

Context-Sensitive Help
Our context-sensitive help links to every dialog in our applications, immediately jumping to the chapter of the help documentation in PDF format. From new or skilled operators, our help system will...

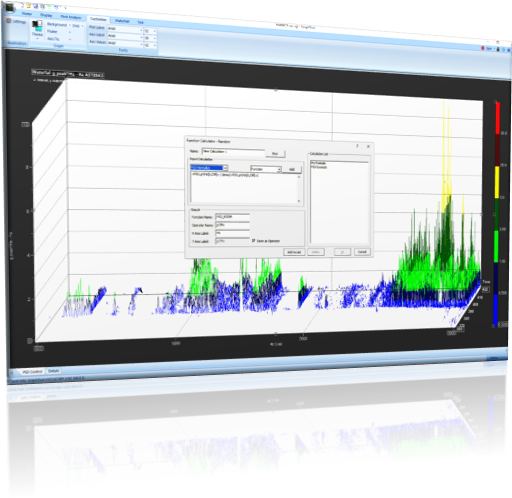

Function Calculator
The Function Calculator is a versatile data handler that operates on input data to create new output data. The input and output data sources are completely configurable and can operate on internal...

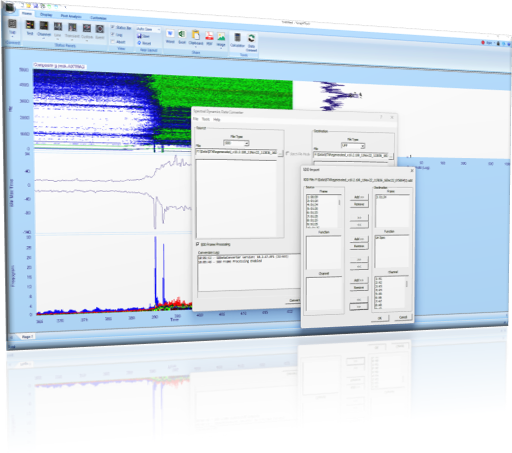

Data Convertion
Spectral Dynamics' Data Conversion utility can be used to convert data files to different file formats for importing/exporting between applications. Common data types such as ASCII (text file), UFF...

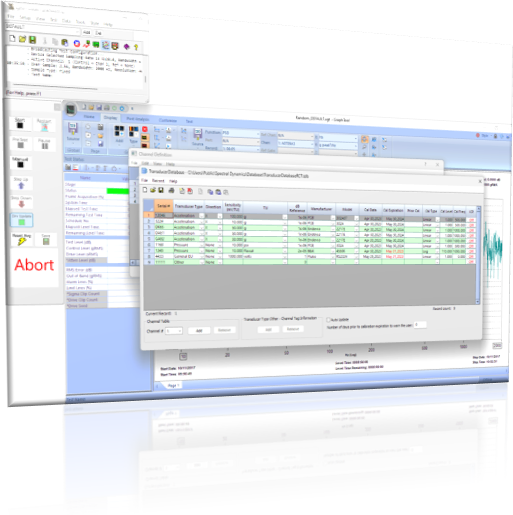

Transducer Database
The optional Transducer Database application allows the user to organize their transducers or other equipment across multiple test configurations. Keep track of sensitivity, dB reference,...
